SOLAR GENERATION MODULES
Quality Assured.
As fully standardized, manufactured and product-certified solar farm products, REDAVIA’s Fast Track Solar Modules reach consistent quality standards unmatched by traditionally constructed solar farms. Products comply with all relevant international standards. Certification is obtained by a recognized independent quality control institute. In combination with an energy storage system, REDAVIA’s tried-and-tested system controllers and grid and/or diesel generator backup if required, the Fast Track Solar Modules form a 24/7 reliable electricity supply system, delivering clean and highly affordable electricity anywhere.
REDAVIA Fast Track Solar 80 Ground Mount
(FTS-80GM)
The FTS-80GM is REDAVIA’s premier solar farm solution. The system is completely pre-assembled by REDAVIA with all components when delivered to site. The FTS-80GM is then installed on unobstructed level ground by REDAVIA’s trained installation team and connected to the client‘s grid for immediate operation.
Module Structure FTS-80GM
300 Solar Panels
Each Unit is organized in 16 rows of up to 19 panels, with 8 strings connected to each inverter.
Inverter Stand
Purpose built roofed inverter stand with 2 inverters, factory-mounted and cabled, with electrical and communication distribution boards and fully integrated cable management.
Ground space requirements
Per Unit:
~40 x 30 m, orientation to suit site
Per MW:
80 x 180 m
Additional components included
- DC wiring
- Grounding and lightning protection components
- Data collection
- Monitoring equipment
- Concrete ballast blocks
- Deployment tools
REDAVIA Fast Track Solar 40 Carport (FTS-40CP)
At REDAVIA, we know that a solar plant can be more than just a cost-efficient energy solution – by leasing the REDAVIA FTS-40CP system, clients get affordable energy to power their operations and development and also a premium aluminum carport to provide shading and protection of vehicles. This model provides a pre-configured carport solar plant that adds a level of leisure to client parking lots, while our flexible lease contracts allow clients to grow on their own terms.
Carport Configuration
The Carport cover can be arranged either in one row of 16 or two rows of 8 spaces each. In either configuration, the FTS-40CP allows clients to make efficient use of the land they already own by simultaneously turning their parking lot into an instrument for energy generation and providing their customers with an upscale parking experience.
Module Structure FTS-40CP
120 Solar Panels
Each Unit is organized in 5 rows of 24 panels, with 6 strings connected to each inverter.
Carport Frames
Purpose built high quality aluminium framing fully braced to resist wind loading up to 50m/s supporting a roof of energy providing solar modules.
Ground space requirements
Per Unit:
22.8 x 9.1 m or 46.5 x 4.5 m, orientation to suit site
Per MW:
24 Units supply 1MW
Additional components included
- DC wiring
- Grounding and lightning protection components
- Data collection
- Monitoring equipment
- Concrete ballast blocks
- Deployment tools
REDAVIA Fast Track Solar 60 Roof Mount (FTS-60RM)
The FTS-60RM is a full-service rooftop solar solution. The system is completely pre-assembled by REDAVIA with all components when delivered to site. The FTS-60RM is then installed on the client’s roof by REDAVIA’s trained installation team and connected to the client’s power system for immediate operation.
The REDAVIA FTS-60RM model provides a pre-configured roof-mounted solar plant that helps form a cost-efficient hybrid energy solution, while our flexible lease contracts allow clients to grow on their own terms. By leasing the REDAVIA FTS-60RM system, clients get cost-effective energy to power their operations and development.
Module Structure FTS-60RM
160 Solar Panels
Each Unit is organized in rows of solar photovoltaic modules to suit the roof area with maintenance access walkways integrated every 5 rows and strings configured by row.
Roof space requirements
Per Unit:
Typical formats: 6.6m x 67.2m, 9.9m x 48.3m, 13.2m x 33.6m
Per MW:
14 Units supply 1 MWp
Roof mount structure
Purpose-made high-quality aluminum module support framing system designed to resist wind-loading up to 50ms-1 and fixed to roof structure with self-tapping hanger bolts complete with roof sealing washers. Modules aluminum-framed 144-cell Mono PERC technology from tier 1 supplier.
Additional components included
- Factory-assembled power conversion stand with inverter, protection and monitoring equipment
- DC wiring and cable management basket
- Grounding and lightning protection
- Data collection and 24/7 monitoring equipment
- Access walkway for safest cleaning and maintenance

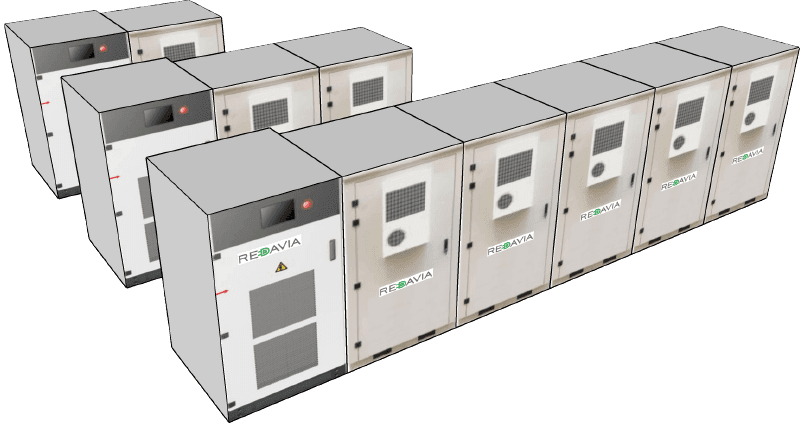

ENERGY STORAGE MODULE
MAKE IT CLEANER.
The Energy Storage Module stores additional solar energy that is not needed during the day so it can be used at night or during low irradiation days, thereby enabling a higher solar energy penetration overall. This module supports a solar-diesel hybrid system and can also provide backup power supply in case of grid outages.
